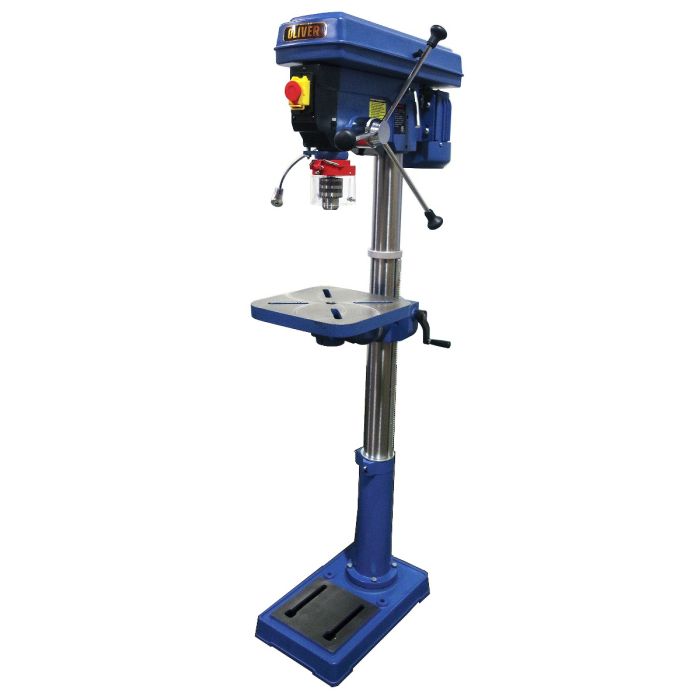

17" Swing Floor Model Drill Press - 10062 **RECONDITIONED**
***RECONDITIONED UNITS WITH 1 YEAR WARRANTY***
- Line interrupt switch requires manual start in the event of a power loss.
- Spindle is supported by high quality sealed ball bearings.
- LED lamp provides a well lit work area.
- Table rotates 360° and tilts 45°.
- Crank operation moves table up and down with locking clamp.
- Laser pointer is built-in for precise repeat drilling.
- Drill chuck guard included.
- 5/8”chuck and key holder included.
- Cast iron pulleys reduce vibration.
- Positive depth stop allows repeated operations with ease.
- Powerful 3/4 HP Motor.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.
| Model Number | 10062 |
|---|---|
| Stock Number | 10062.001SUR |
| Type | 17” Floor |
| Swing | 17” |
| Drilling Capacity | 3/4” |
| Chuck Capacity | 5/8” |
| Chuck Taper | JT-3 |
| Table Size | 12” x 12” |
| Table Tilt | +/- 45° |
| Spindle Taper | MT-2 |
| Spindle Travel | 3-1/8” |
| Spindle Speeds | 16 |
| Speed Range RPM | 240 to 3,400 |
| Spindle to Table | 28” |
| Spindle to Base | 48-1/2” |
| Column Diameter | 3-1/8” |
| Base Size | 11-3/4” x 19-5/8” |
| Overall Height | 64-1/2” |
| Motor | 3/4HP 1Ph 115V (12 Amps) |
| Net Weight | 200 lbs. |
| Gross Weight | 215 lbs. |
Write Your Own Review
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
10062 Manual | 3.2 MB | Download |
